Vandal resistant low profile antenna 850/900MHz (manhole antenna) 1.8m cable
Product details
- SKU ANT-U850/900-4
- Weight 277 g
- Packed Length 135 mm
- Packed Width 135 mm
- Packed Height 125 mm
Do you have any questions about this product?
Product Accessories

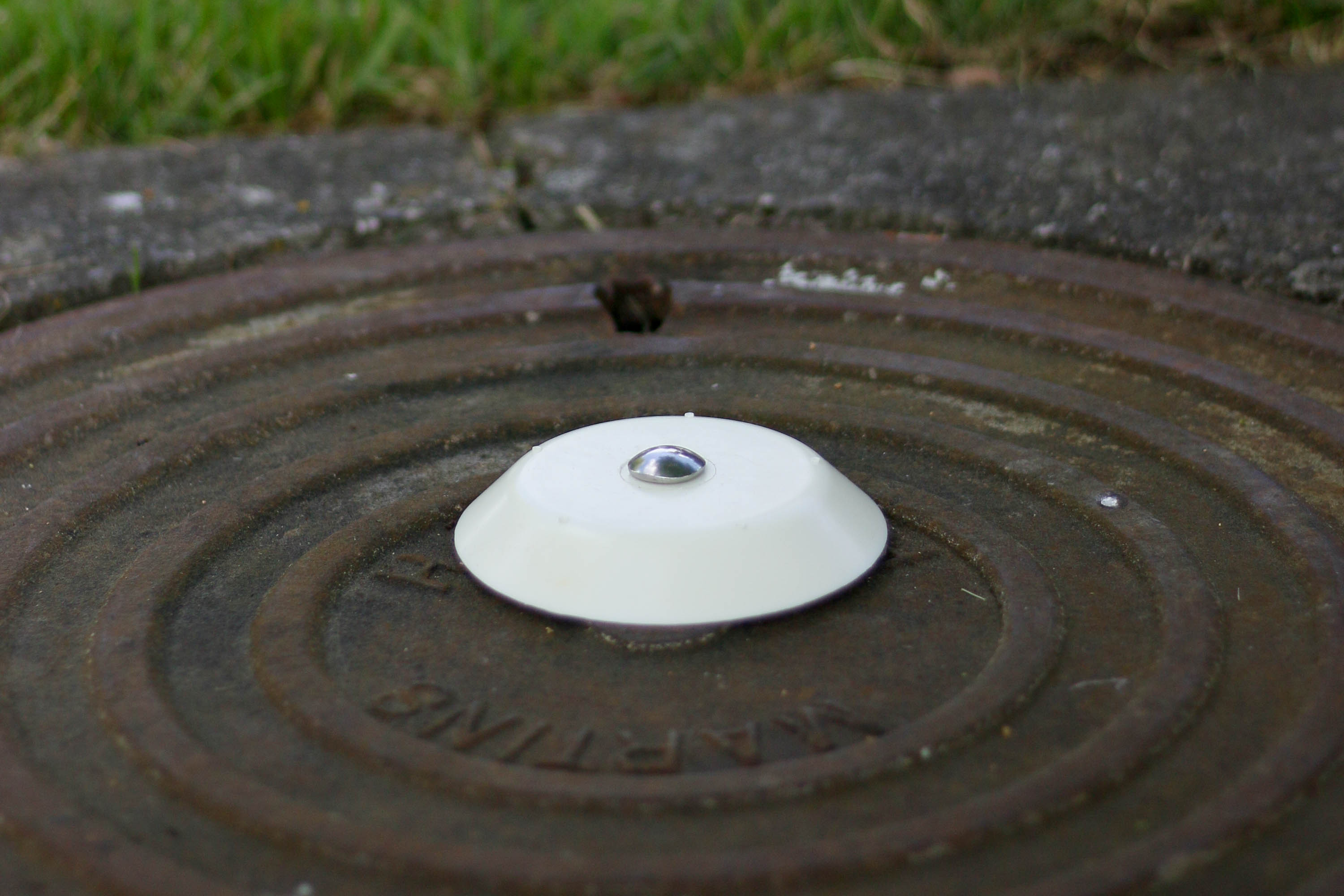

Tough antenna designed for use on manhole covers, even in heavy vehicle traffic locations. This antenna was initially designed for use with sewer and overflow monitoring units - sites where the telemetry is underground, and often covered with a steel manhole lid where you need an easy to install but effective above ground antenna. They can also be used in other vandal prone applications, such as on the top of roadside cabinets.
Technical Specifications
- 850/900MHz version (824-803MHz) covers cellular bands 5, 6, 8, 19, 20, as well as 868/915MHz ISM telemetry bands
- 3dBi gain monoband tuned loop antenna
- Low profile 120mm (4.72") diameter x 17mm (0.67") max height (same height as a cats eye road marker)
- SMB male cable termination (fits through securing nut)
- SMB to SMA male adapter included, other adapters available separately
Key Features
- Available with 650mm or 1800mm cable length
- Fits to a steel manhole lid with a single 10mm hole
- M10 x 100mm slotted stainless steel coach bolt protects cable during manhole opening
- High density urethane (white only) to withstand heavy traffic and extreme temperatures
- Manufactured by Harvest in New Zealand
Discounts are available based on quantity, and will be applied automatically at checkout:
- 8% on orders of 11-50 units
- 15% on orders of 51-100 units
- 20% on orders of 101-200 units
